Drive Shaft Issue

I was excited! Now I could actually move the Cruiser into the garage away from the heat, humidity and worst of all the mosquitoes! My next step was to bolt the drive shaft back in so I could do just that. Piece of cake right? Well .. See a familiar pattern here? As with most Cruiser repair jobs there is always the rest of the story ...

Seems that the reason my brother had the rear axle out in the first place was to replace the third member. The original one had dropped a C-clip at high speed and pretty much trashed itself. He had obtained a third member from the front of a junked FJ40 and you guessed it, it was from a later year! This of course meant the pinion flange had the larger bolt hole pattern and would not match up with the drive shaft. TLCA to the rescue .. I searched the archives and asked a couple of questions of the list and found out that it was easy to fix the problem, just remove the pinion flange from the third member, clamp it to the rear drive shaft flange after aligning the holes and use a 25/64" drill to make the flange holes slightly elongated. Well that's exactly what I did. Here is the drilled flange. As you can see it does not take much at all. I did have to use a Dremel tool with a grinder bit to fine tune this approach. As I do not yet have a drill press and the bit walked on me a bit.

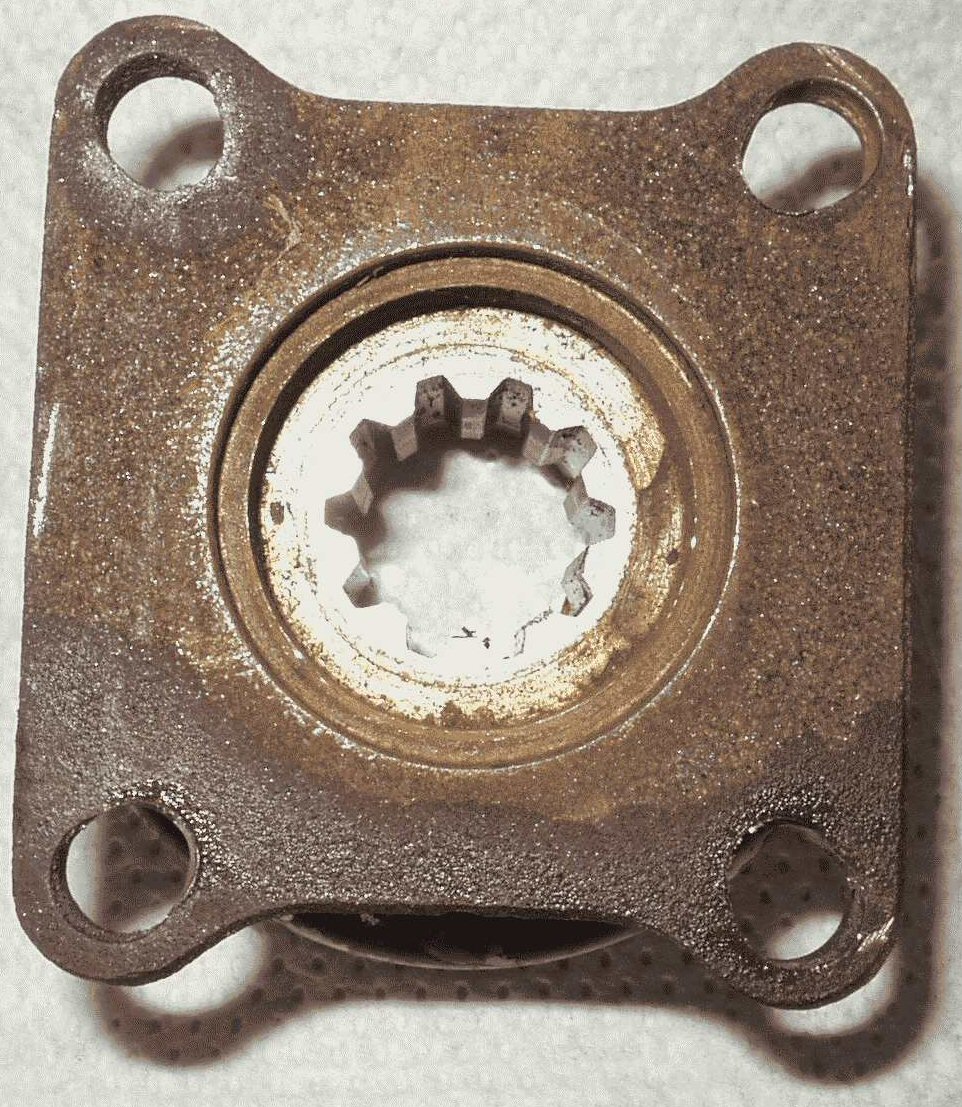

Drilled Flange

Fig. 1

OK so NOW I could bolt it back in the Cruiser. I got to looking around for the drive shaft. bolts and was amazed when I actually found them in one of the boxes in the back of the Cruiser! Maybe the Cruiser gods aren't calling !Oy home just yet ...

The shaft was installed and a trip was taken up the driveway and around the court! Illegal as hell! I had no insurance, tags or even title! I didn't care, it moved! I felt like a bona fide Cruiser head that day. Little did I know the trials and tribulations that were to follow ... At least I could park it in the garage now.

Me, !Oy and Al

Fig. 2

Me, !Oy and my neighbor Al After The Illegal Maiden Trip

Al passed away in April of 2007 before I got to take him for a ride in the FJ....

Next up: Electrical...
