Wiper Blade Replacement

Yeah I know... You are thinking, "Why would someone waste time putting up a web page to tell me how to install wiper blades?" Well if you have the older model Cruiser you have found out that Toyota wants a fortune for two blades, Wal-mart or AutoZone can't get them and though CCOTand SOR do have them, you have to pay more in shipping than you pay for the blades! So that leaves one other option and that is: REFILLS! It's very easy to replace the rubber blades themselves using standard refills from anywhere. All you need to do is get the ones with the proper shape and length. The blades on my Cruiser are exactly 12" long. If you don't want to trim any then get a 12" refill kit for a rear wiper on a lot of cars. I just bought 19" standard refill blades at AutoZone. Trico Part # 46-150.

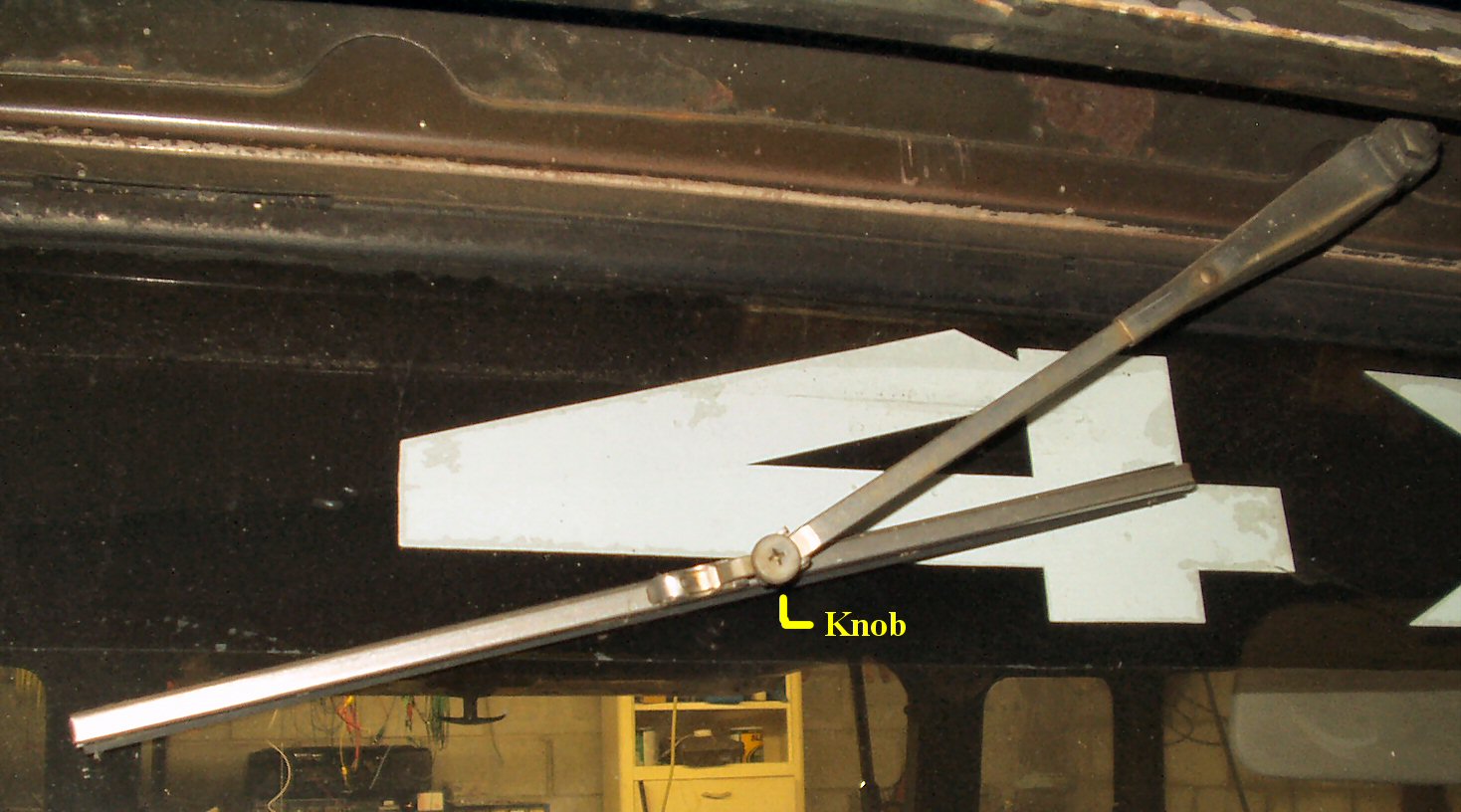

Removing Blade

Fig. 1

Removing Blade

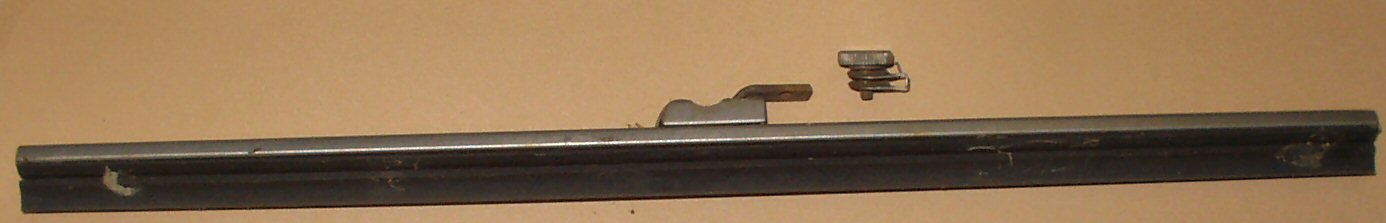

Knob and Clip

Fig. 2

Knob and Clip

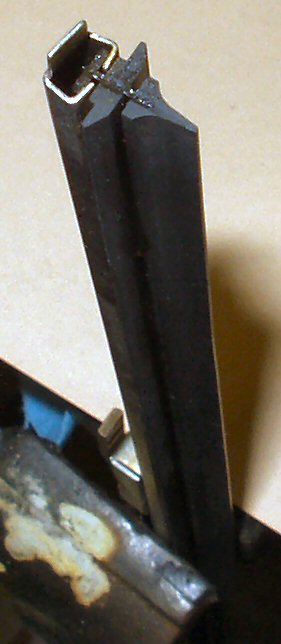

Blade Housing

Fig. 3

Blade Housing

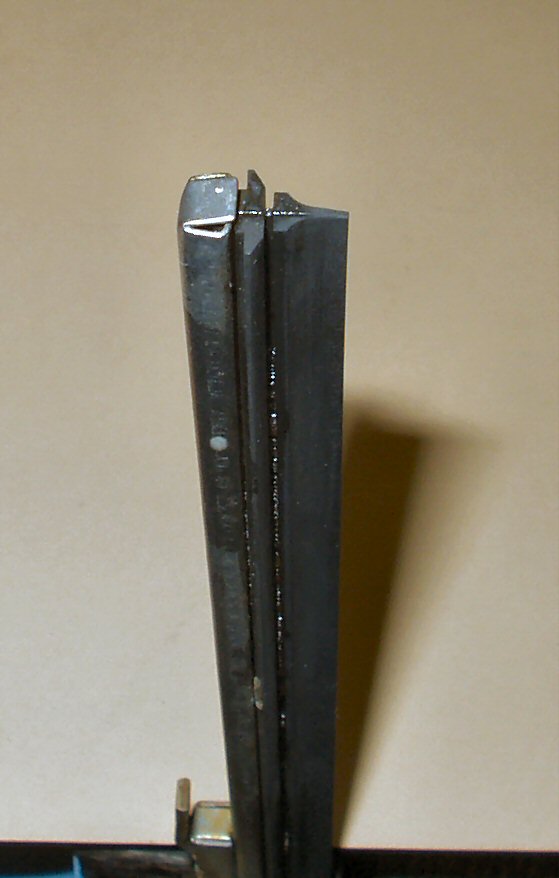

Housing Opened

Fig. 4

Housing Opened

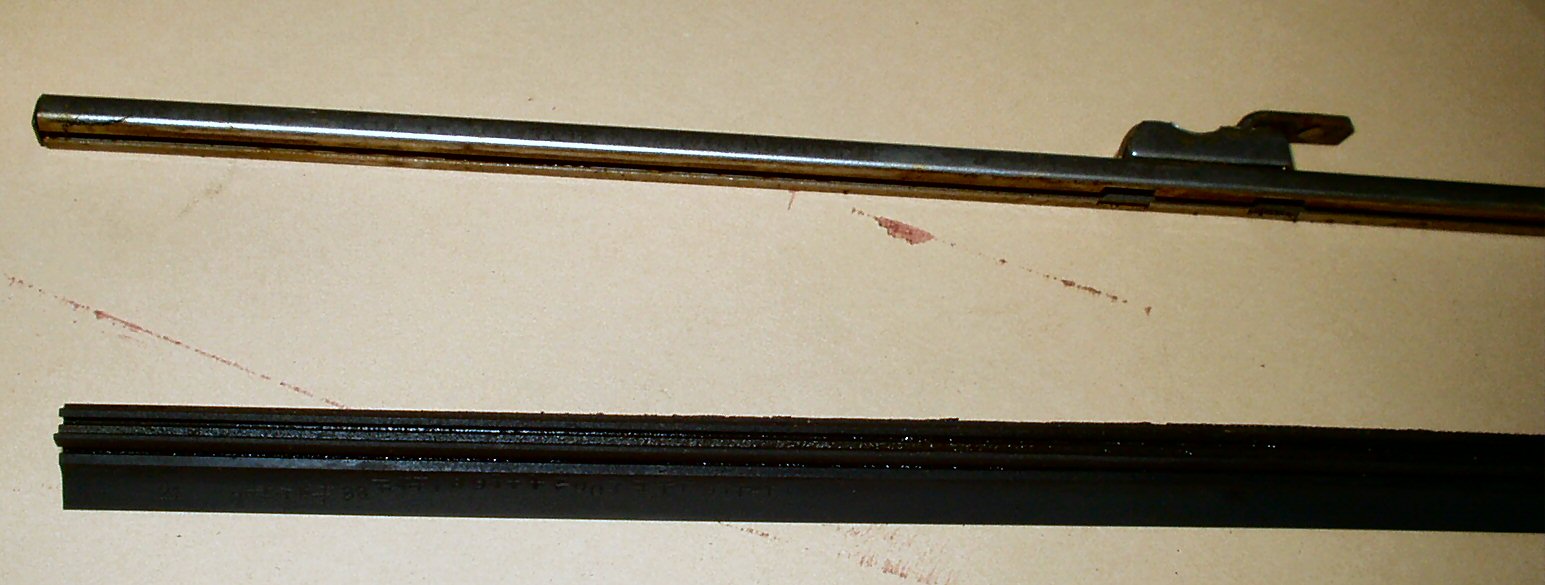

Blade Removed

Fig. 5

Blade Removed

  1. First you need to remove the blade from the truck. Fig. 1 shows the blades and the screw knob you have to remove. Unscrew the knob, and the blades comes off. Don't lose the knob or the clip! I hear they are hard to come by. :-) Fig. 2 shows all the pieces.
  2. See Fig. 3. Lightly clamp the blade housing in a vise and using a small screwdriver gently pry open the end of the housing. See Fig. 4.
  3. Slide out the old blade and take it with you to the auto store so that you get the correct replacement. See Fig. 5.
  4. Just find ANY replacement with the shape of the existing blade.
  5. Remove the blade from the package and remove the clips holding the metal support strips on each side. Save the metal strips things, they make excellent tools.
  6. Cut the new blade to length and slide it back in the housing.
  7. Gently bend the end of the housing back into place.
  8. Enjoy your new blades!



Should you wish to buy the Toyota blades and/or arms, here are the part #'s courtesy of IDave:

Arm assembly: 85190-60060 (68-72)

Blade Refills: 85220-60030 (68-72)
