Mid Bed Repair
Fig. 1
What I started with
Fig. 2
Fixing the holes
Fig. 3
More holes to fix
Fig. 4
Mid Bed De-Rusting
Fig. 5
De-Rusted ready to continue repair
Fig. 6
Adding Seat Belt and Heater Mounts
Fig. 7
Measuring for front patch panel
Fig. 8
Welding on Front patch panel
I know a lot of folks would have just thrown this section away
and bought a new one. Believe me, several times I started to do just that! However
with money being tight and my welding/metal fabrication skills needing improving
I decided to continue repairing it.
Fig. 1 shows what I started
with, a rusty, greasy thin in sections piece of 33 year old sheet metal. I welded
in some very ugly patch panels and even tried my hand at metal forming. See
Fig. 2-3 . Since this will all be covered with LineX
or something it did not have to be pretty, just structurally sound. Next I de-rusted
the whole thing (Fig. 4 ) so I could tell if I
wanted to continue or not. It was more solid than I thought so I continued the

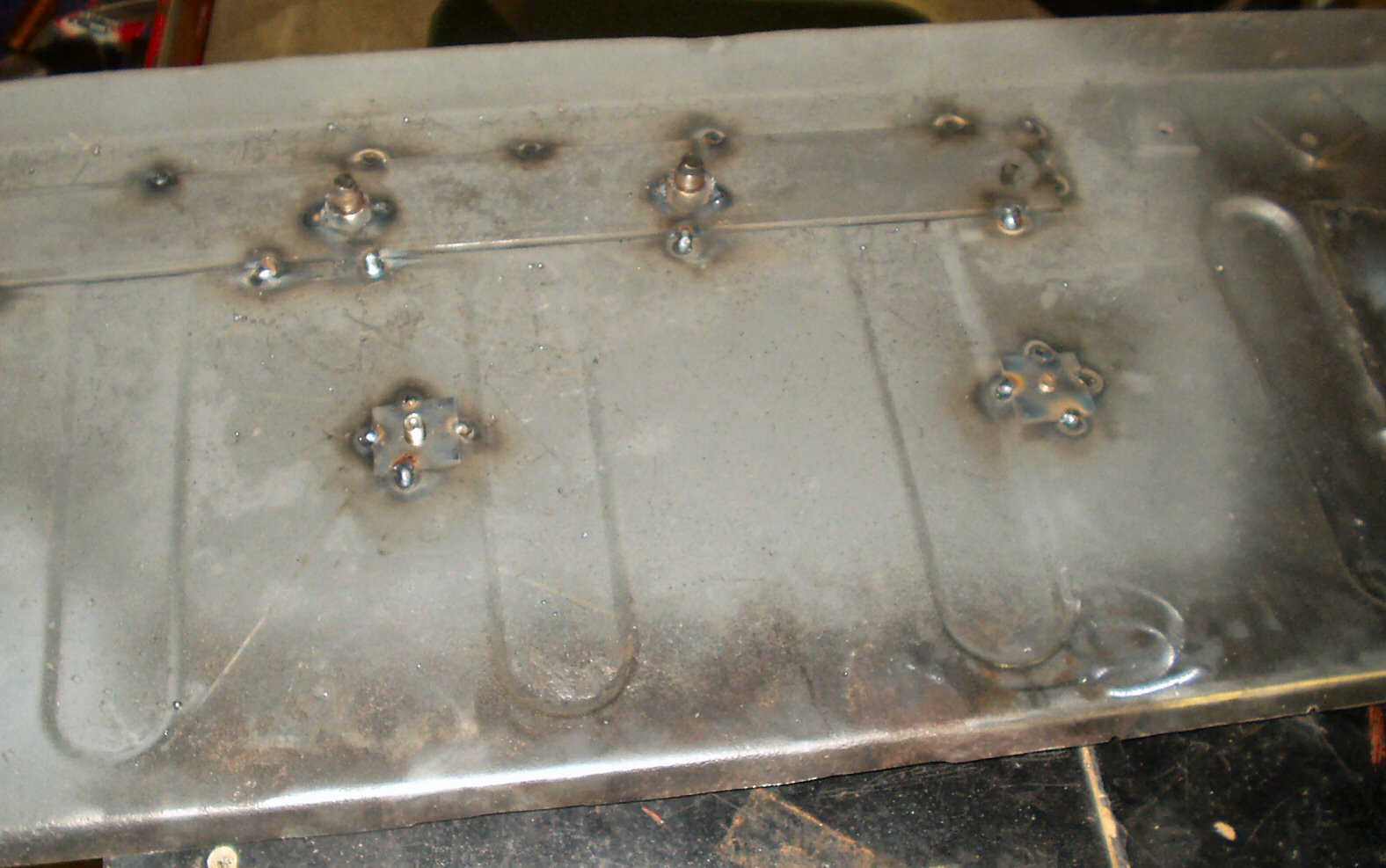

repairs. In Fig. 6 I added something my truck never
had; Rear Heater mounting plates and extra floor anchors for the future front
shoulder and lap seat belts. Figs. 7-8 show the
front patch panel job. I also welded up all the other rust holes in the sheet
metal including the ones I drilled to remove the old center channel spot welds.
I had my new channel mounting lip made 1.5" 'wider' than the stock one
so it would be repositioned on thicker metal. The original one is a bit thin
in that area. Well that wraps up the mid bed repair. Check here
for some pics of welding it in place.
